BUCK M9 BAYONET 1993 MARINE PROTOTYPE USMC /
2nd variation : 10 made
Information from Mr Jeff HUBBARD : BUCK Quality control for M9 1993 Marine :
"I do remember for sure that the inside threads on the long tang failed miserably and we did not present that version".
BUCK made 360 prototypes for the United States Marines
Variation 1 : 175 made with long tang riveted (issued)
Variation 2 : 10 made with long tang inside threads (not issued)
Variation 3 : 175 with short tang threaded sleeve (issued)
Most were destroyed during the testing
Blade : Black Oxide 425 M Stainless Steel 57 plus RC hardness
Handle : ZYTEL |
|
![](/specific_files/4/8/dsc007681.jpg?update=20150524174115) |

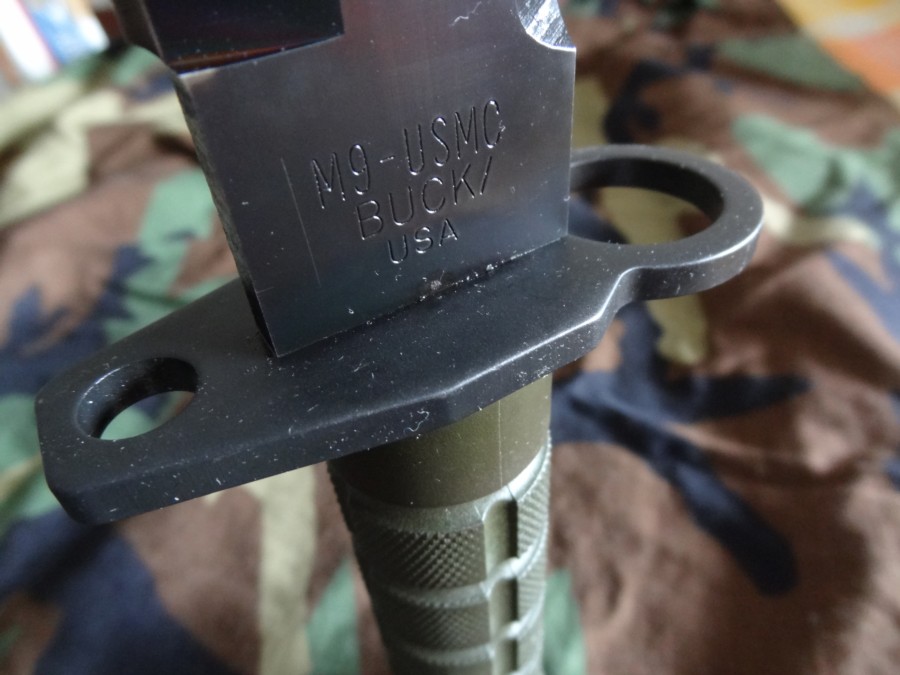

The guard was purposely assembled upside down with the bottle openers nearly covered up by the handle.
|
![](/specific_files/5/3/1/dsc00782.jpg?update=20150525211534) |

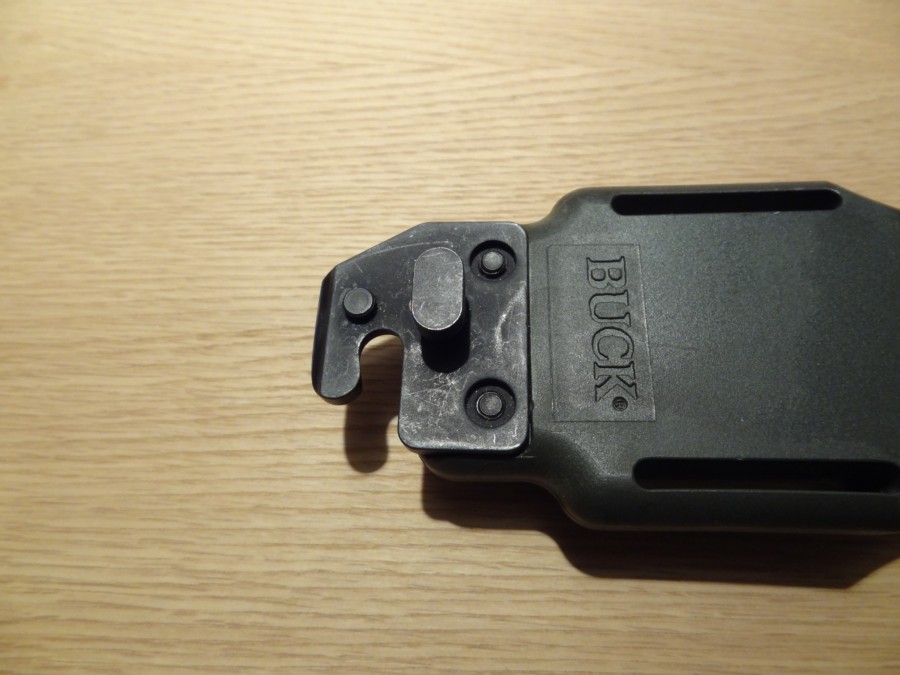

No SCREWDRIVER TIP on the M9 USMC MARINES PROTOTYPE 1993 CUTTER PLATE
|
![](/specific_files/5/2/usmc1993secondgenerationsuite20001.jpg?update=20100320222615) |

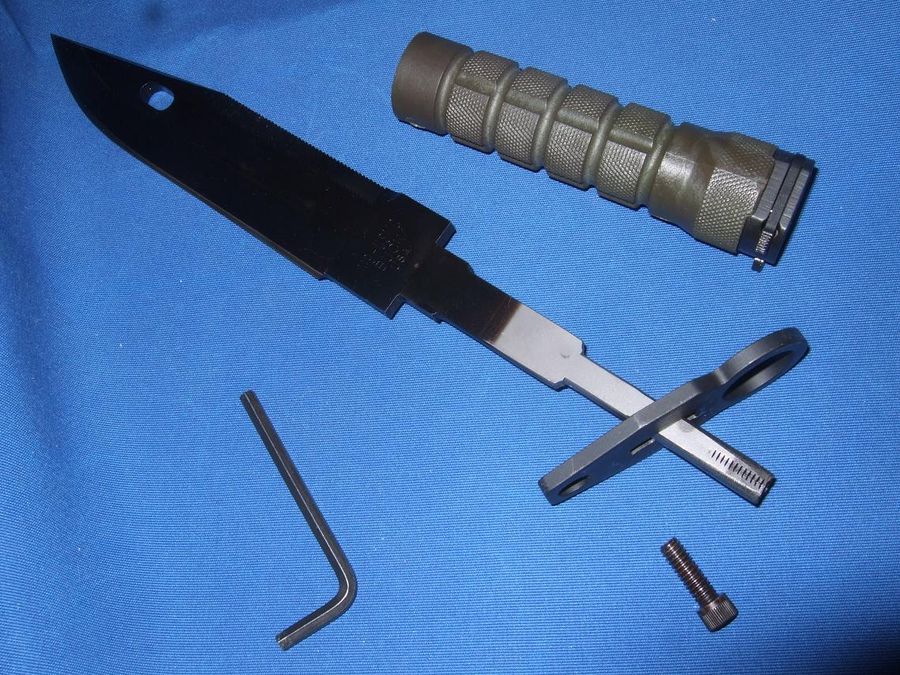

2nd variation : 10 made
|
![](/specific_files/5/2/8/rich_neyman_phrobis_book_2018_photo_2.jpg?update=20180218163923) |

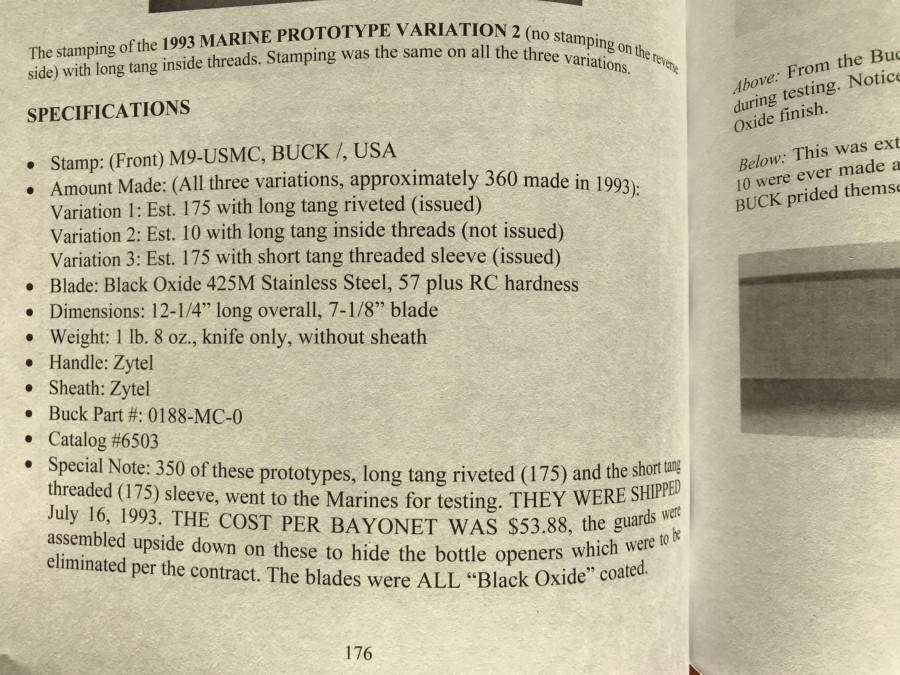

From the Richard NEYMAN book : M9 BAYONET THE AUTHORIZED HISTORY
|
![](/specific_files/6/5/8/usmcjoehouserm9bayonet.jpg?update=20180218163923) |

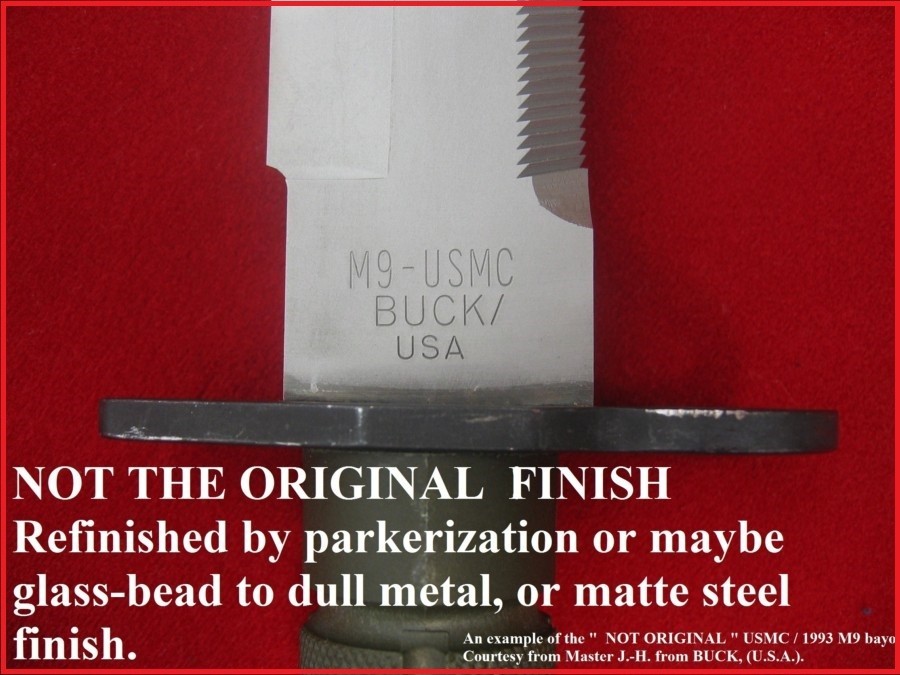

I saw two times an USMC / 1993 model with the grey color blade,
On ebay, these bayonets are re-finish NOT THE ORIGINAL FINISH
Looks like blades were sharpened and refinished by parkerization or maybe glass-bead to dull metal, or matte steel finish.
No historical interest : last photo
|
|
